Paper Collated Strip Nails

Paper collated strip nails with a 34° angle, available as round head nails (GF) or D-head nails (GR). Suitable for strip nailers from Tjep, BeA, Dewalt, Holzher, Hitatchi, Max, Paslode, and Senco.

Paper collated strip nails are fastening nails for strip nailers of various brands operating at a 34° angle. These nails are generally divided into two categories: round head strip nails and D-head strip nails. Round head nails, as the name suggests, feature a traditional round head, whereas D-head nails (also called clipped nails) are designed to allow nail shanks to touch each other, enabling more nails per strip. Round head magazines typically hold 50 nails per strip, while D-head nails can hold up to 75.

Another difference lies in the holding strength of the nails. While the difference is minor, round head nails have slightly better holding strength than D-head nails. However, the withdrawal force for both types is quite similar.

Paper Collated Strip Nails - Our Offer

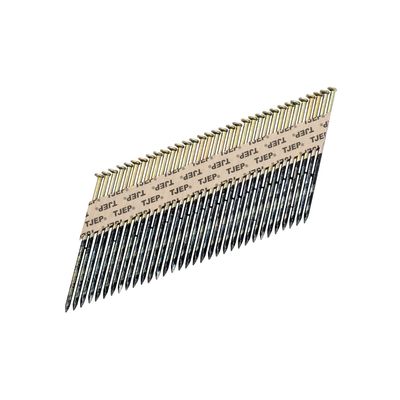

Strip Nails with Round Head - GF 34° Head type: Round head Diameter: 2.8 - 4.2 mm Available lengths: 50 - 130 mm Angle: 34° Available finishes: 12µ galvanized - hot-dip galvanized - stainless steel A4 (rustproof) With CE certification - EN 14592 - Eurocode 5

Strip Nails with D-Head - GR 34° Head type: D-head Diameter: 2.8 - 3.4 mm Available lengths: 50 - 100 mm Angle: 34° Partially with CE certification - EN 14592 - Eurocode 5 Available finishings: Bright - Smooth shank Bright - Ring shank Galvanized - Ring shank 12µ galvanized - Smooth shank 12µ galvanized - Ring shank Hot-dip galvanized - Ring shank

Shank Styles

• Smooth shank: Standard nails without profile
• Ring shank: Nails with a ring profile for increased durability in wood
• Screw shank: Maximum hold in wood due to a screw-like shank

Surface Coating

• Bright: Without coating
• Galvanized: 8µ zinc layer for increased corrosion resistance
• 12µ galvanized: 12µ zinc coating for even greater durability - includes CE Certificate EN 14592 - Eurocode 5
• Hot-dip galvanized: Strongest form of galvanization - includes CE Certificate EN 14592 - Eurocode 5
• Rustproof - Stainless steel A2: Stainless steel nails with CE Certificate EN 14592 - Eurocode 5
• Rustproof - Stainless steel A4: High-grade stainless steel nails with CE Certificate EN 14592 - Eurocode 5

Diameter and Length

Depending on the material and coating, lengths from 50 - 130 mm are available. For easier identification, each coating is color-coded:

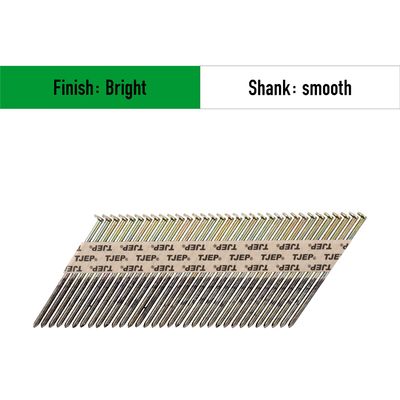

• Green: Bright - Without coating

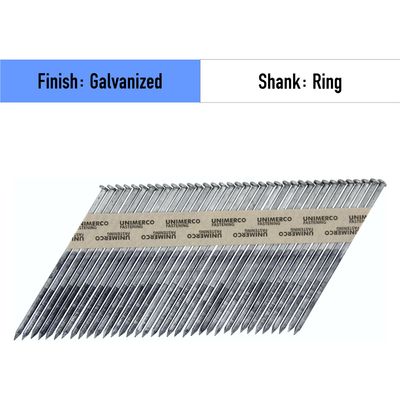

• Blue: Galvanized

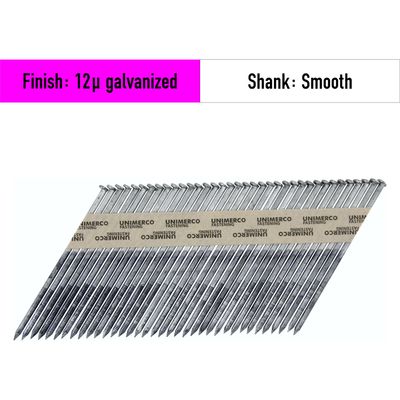

• Purple: 12µ Galvanized
• Red: Hot-dip Galvanized

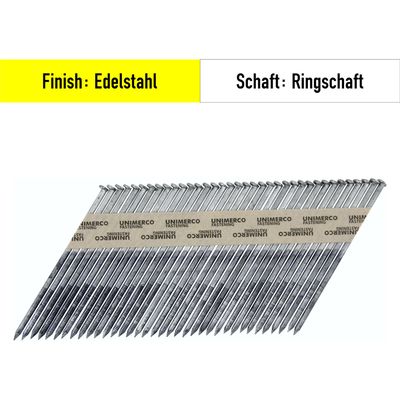

• Yellow: Stainless steel

Contact

Do you have any further questions about our product? Contact us! Our contact details are as follows:

Paper Collated Strip Nails - Our Range
